Modular Aluminum Stage Truss System for Events and Concerts

  • Modular Aluminum Stage Truss System for Events and Concerts
  • Modular Aluminum Stage Truss System for Events and Concerts
  • Modular Aluminum Stage Truss System for Events and Concerts
  • Modular Aluminum Stage Truss System for Events and Concerts
  • Modular Aluminum Stage Truss System for Events and Concerts
  • Modular Aluminum Stage Truss System for Events and Concerts
Lugar de origem Jiangsu, China
Marca Shizhan
Número do modelo Truss-rt de alumínio
Quantidade de ordem mínima 100
Preço US$52-55

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Tipo de conexão Conexão de PIN Forma Retângulo, quadrado, triângulo, redondo ou personalizado
Projeto do quadro Modular Comprimento 10,0-4,0 m
Material Liga de alumínio Capacidade de carga de carga 1000 kg
Duração da unidade 0.5m, 1m, 2m, 3m, 4m, 5m ou personalizado Forma da secção da armadilha Quadrado ou Redondo
Espessura do tubo da treliça 1.5/2/3mm Diâmetro do tubo de treliça 20 mm, 32 mm, 50 mm
Dureza 16 graus Espessura do tubo principal 30*2mm; 50*3mm; 50*4mm; 50*5mm
Espessura do tubo de vice 18*2mm; 20*2,5mm; 25*2,5mm Aparar espessura do tubo 20*2mm; 25*2mm; 30*2mm
Tipo do fardo Espinha ou parafuso
Destacar

modular aluminum stage truss

,

aluminum truss system for concerts

,

event lighting truss with warranty
Deixe um recado
Descrição de produto
Aluminum Event Stage Roof Truss System
Product Specifications
Attribute Value
Connection Type Pin Connection
Feature Durable
Shape Rectangle, square, Triangle, round or customized
Frame design Modular
Product Type Stage Truss
Application Events, Concert, Music, Performance, DJ Band, Event, Exhibition
Length 1.0-4.0m
Material Aluminum Alloy 6082-T6
Load-bearing Capacity 1000kg
Assembly Method Quick installation
Unit length 0.5m, 1m, 2m, 3m, 4m, 5m or customized
Color Silver, black or customized
Truss section shape Square or round
Truss tube thickness 1.5/2/3MM
Truss tube diameter 20mm, 32mm, 50mm
Hardness 16 degree

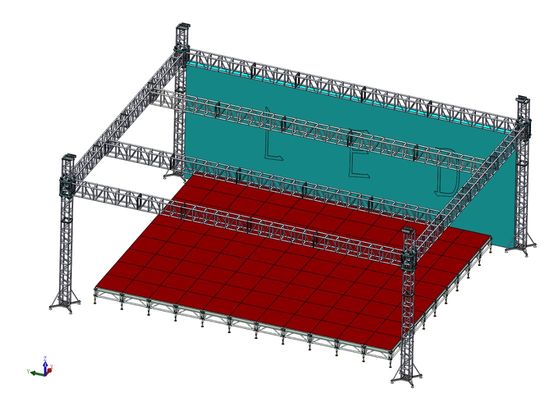

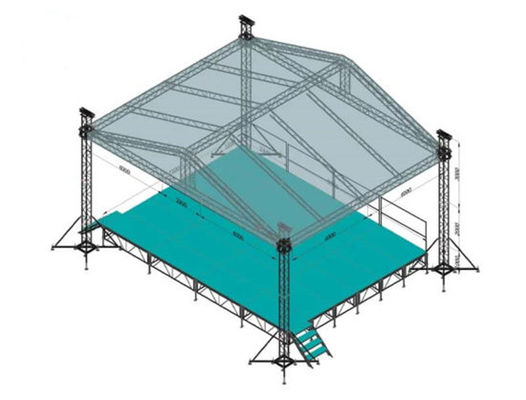

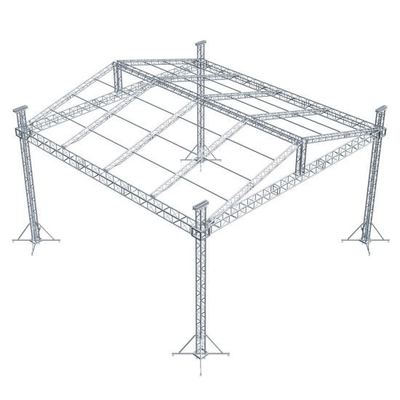

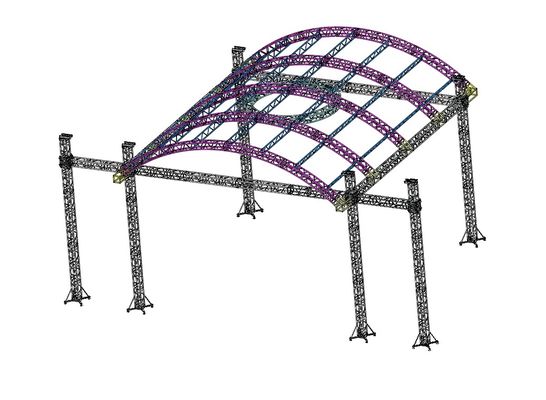

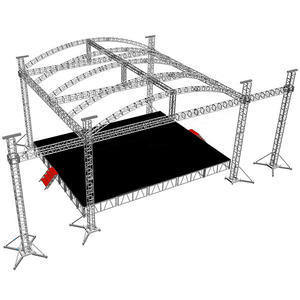

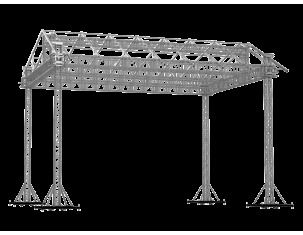

Product Images
Modular Aluminum Stage Truss System for Events and Concerts 0 Modular Aluminum Stage Truss System for Events and Concerts 1 Modular Aluminum Stage Truss System for Events and Concerts 2 Modular Aluminum Stage Truss System for Events and Concerts 3 Modular Aluminum Stage Truss System for Events and Concerts 4 Modular Aluminum Stage Truss System for Events and Concerts 5 Modular Aluminum Stage Truss System for Events and Concerts 6 Modular Aluminum Stage Truss System for Events and Concerts 7 Modular Aluminum Stage Truss System for Events and Concerts 8 Modular Aluminum Stage Truss System for Events and Concerts 9 Modular Aluminum Stage Truss System for Events and Concerts 10 Modular Aluminum Stage Truss System for Events and Concerts 11 Modular Aluminum Stage Truss System for Events and Concerts 12
Technical Details
Specification Details
Truss Material Aluminum alloy 6082-T6
Light duty truss 200*200mm; 250*250mm
Medium duty truss 290*290mm, 300*300mm; 350*350mm; 300*400mm; 400*400mm; 450*450mm; 400*600mm
Heavy duty truss 520*760mm; 600*760mm; 600*1000mm
Main tube thickness 30*2mm; 50*3mm; 50*4mm; 50*5mm
Vice tube thickness 18*2mm; 20*2.5mm; 25*2.5mm
Brace tube thickness 20*2mm; 25*2mm; 30*2mm
Length 0.5m/1m/1.5m/2m...4m or custom size
Truss type Spigot or bolt
Truss Shape Ladder truss, triangular truss, square truss, arch truss, circle truss
Color Silver or black, blue, green...
Usage Concert, new product release, fashion show, booth stand construction
Delivery Time 10 working days
Applications
Our aluminum alloy stage truss system is a modular solution made of lightweight aluminum alloy tubes that can be easily assembled and disassembled. It is widely used in various events and applications:
  • Concerts and festivals: Build stages for concerts, festivals, and outdoor events with configurable shapes and sizes
  • Theatrical productions: Create sets, backdrops, and structures for plays, musicals, and operas
  • Exhibitions and trade shows: Construct booths, displays, and exhibition structures
  • Corporate events: Build stages and backdrops for product launches, conferences, and award ceremonies
  • Sports events: Create race start/finish lines, podiums, and scoreboards
Frequently Asked Questions
Why should I choose your company instead of other suppliers?
  • TUV, SGS, CE Certified products
  • 15 years experience in truss, stage, barrier and scaffolding
  • 35,000 m² workshop with excellent production capacity
  • Professional engineering team for perfect project solutions
  • Own aluminum profile production line for quality control
  • Strict QC process with installation test before delivery
How do I know your quality? Do you support sample orders?
Our products have obtained TUV/SGS/CE/ISO9001 certificates. We can provide samples for quality checking before batch orders.
Which payment methods do you accept?
We accept T/T, Western Union, Trade Assurance, and L/C payments.
What is your product warranty?
Our standard warranty is one year. During this period, we will replace any damaged products free of charge if the damage is not caused by improper use.
Can you do customized designs?
Yes, our professional technical team will provide perfect solutions for your specific project requirements.
